NoviCurt Measurement Guide

How to Measure for Custom Curtains

Simple measurements for a beautiful fit.

Use a metal measuring tape
Measure in inches
Measure twice
Measure first

Measure Your Rod or Track Width

Start with the full width your curtains need to cover.

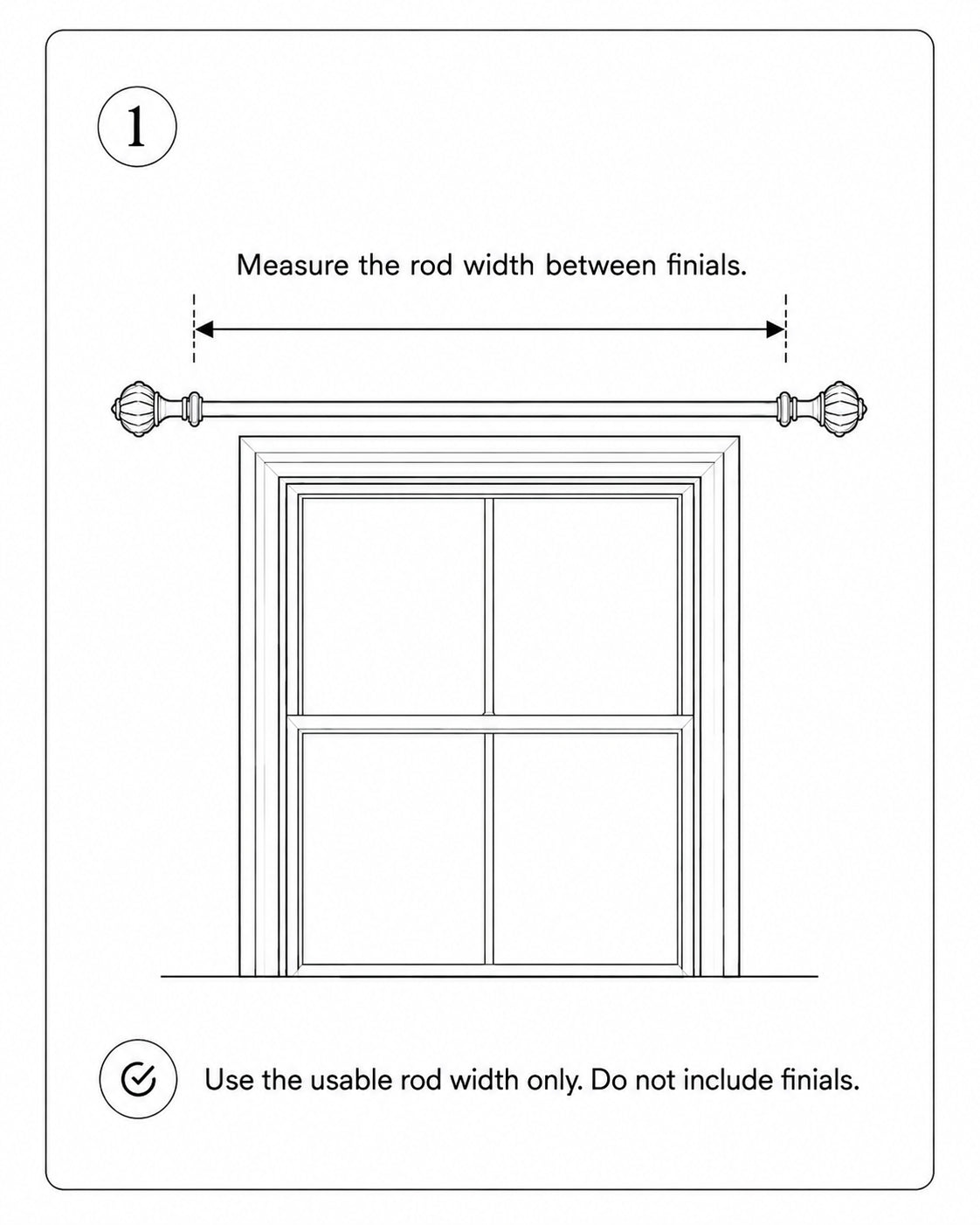

Measure the usable width of an installed curtain rod or track

Already Installed

Measure the full usable width of your existing rod or track.

Rod: Measure between the finials

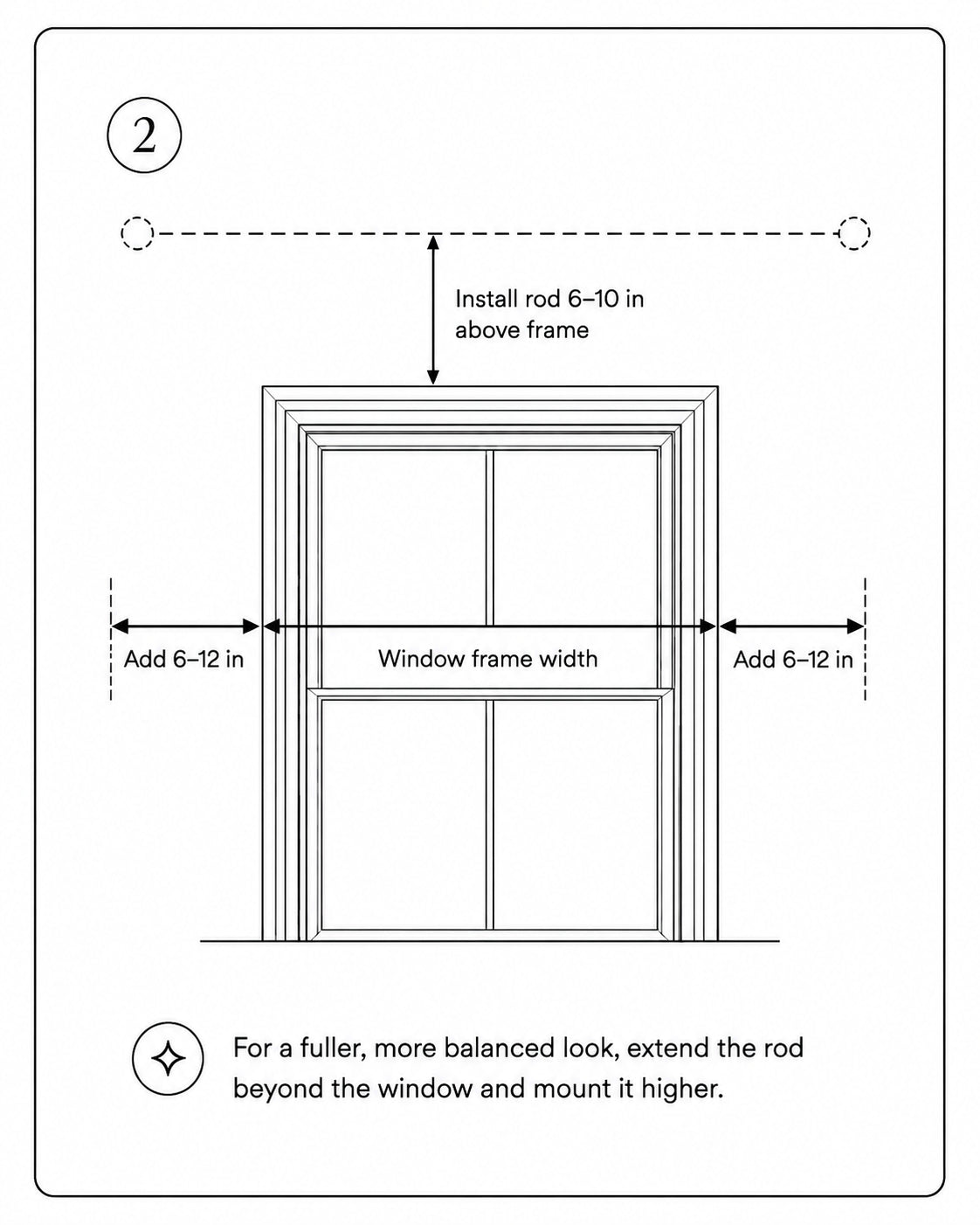

Plan curtain rod width beyond both sides of the window

Not Installed Yet

Measure the window first, then plan the rod or track beyond the frame.

Extend: 6–15" each side Above window: 6–10"
Measure the rod or track width — not only the window glass.
Understand fullness

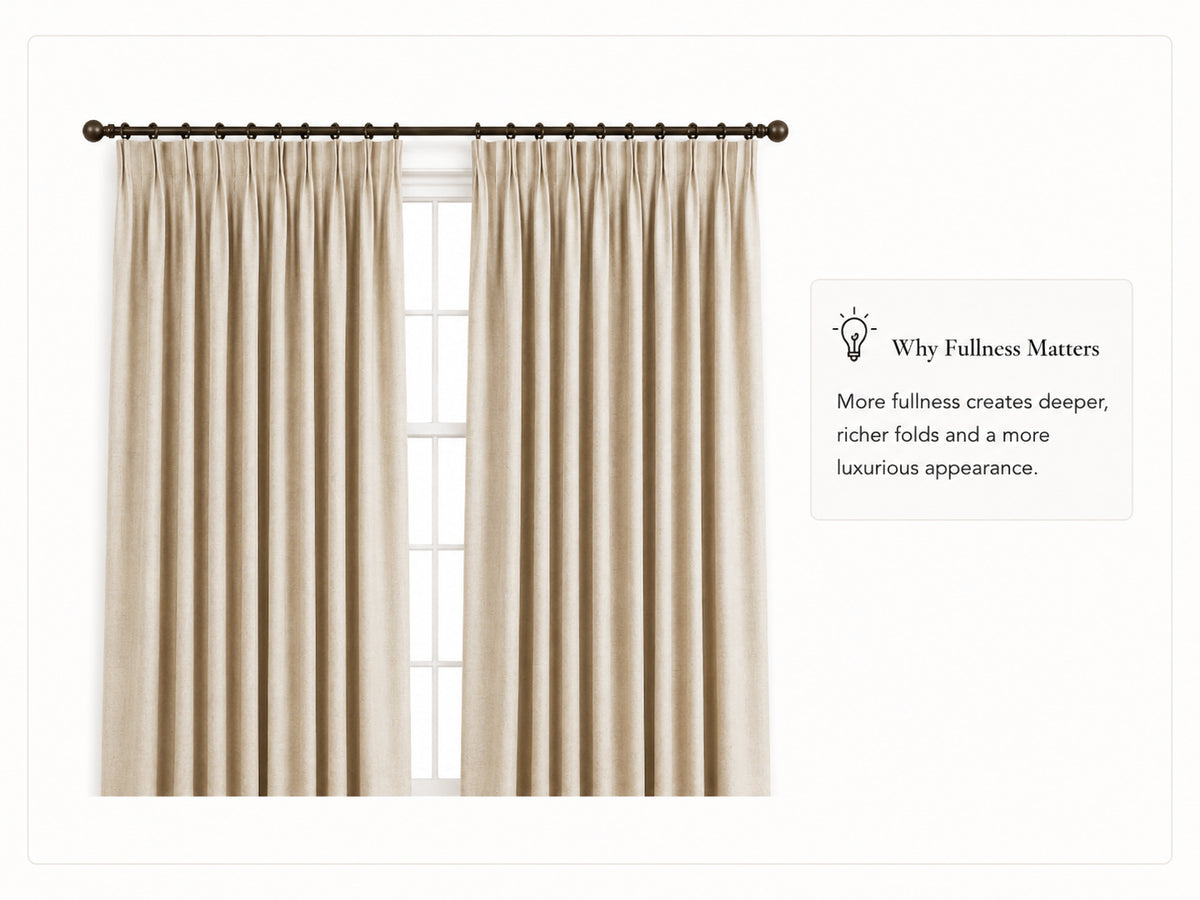

Understanding Fullness

More fabric creates deeper, fuller folds.

1.5×

Relaxed

Softer folds with a lighter appearance.

Recommended RECOMMENDED
2×

Fuller ＆ Tailored

Fuller folds with a richer, more tailored look.

2× fullness is the NoviCurt standard for standard fullness curtain styles.
3

Width Rules

Standard Headers

Grommet, Rod Pocket, Back Tab

Panel Width
Rod / Track Width ÷ Panel Quantity × Fullness
Example:
Rod / Track Width: 100"
Panel Quantity: 2 · Fullness: 2×
100" ÷ 2 × 2 = 100" per panel

Built-In Fullness Headers

Pinch Pleat 2.5× · S-Fold / Wave 2.6×

Panel Width
Rod / Track Width ÷ Panel Quantity
Example:
Rod / Track Width: 100"
Panel Quantity: 2 · Built-in fullness
100" ÷ 2 = 50" finished width per panel
Panel Quantity: 2 panels = one left + one right. Widths shown above are per panel.
Header styles

Header Style Guide

Each header hangs differently and follows its own width and length rules.

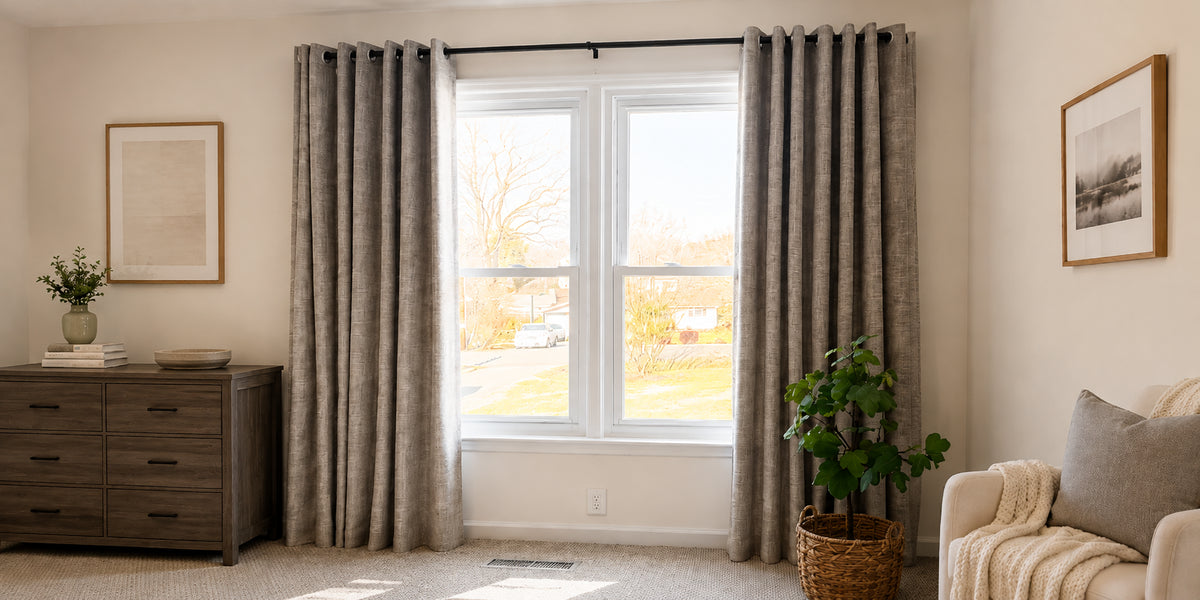

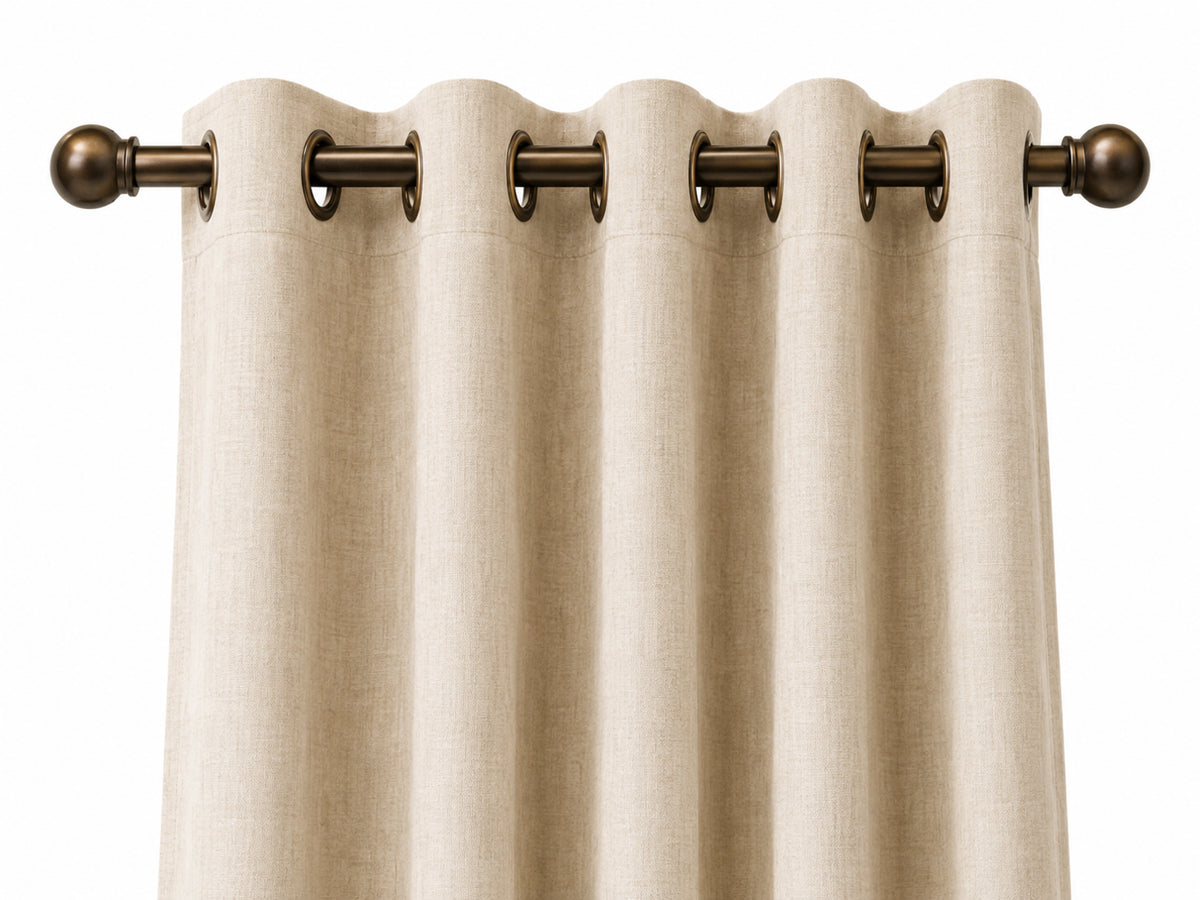

Grommet

Standard Fullness 2×

Clean, even folds with a modern casual look.

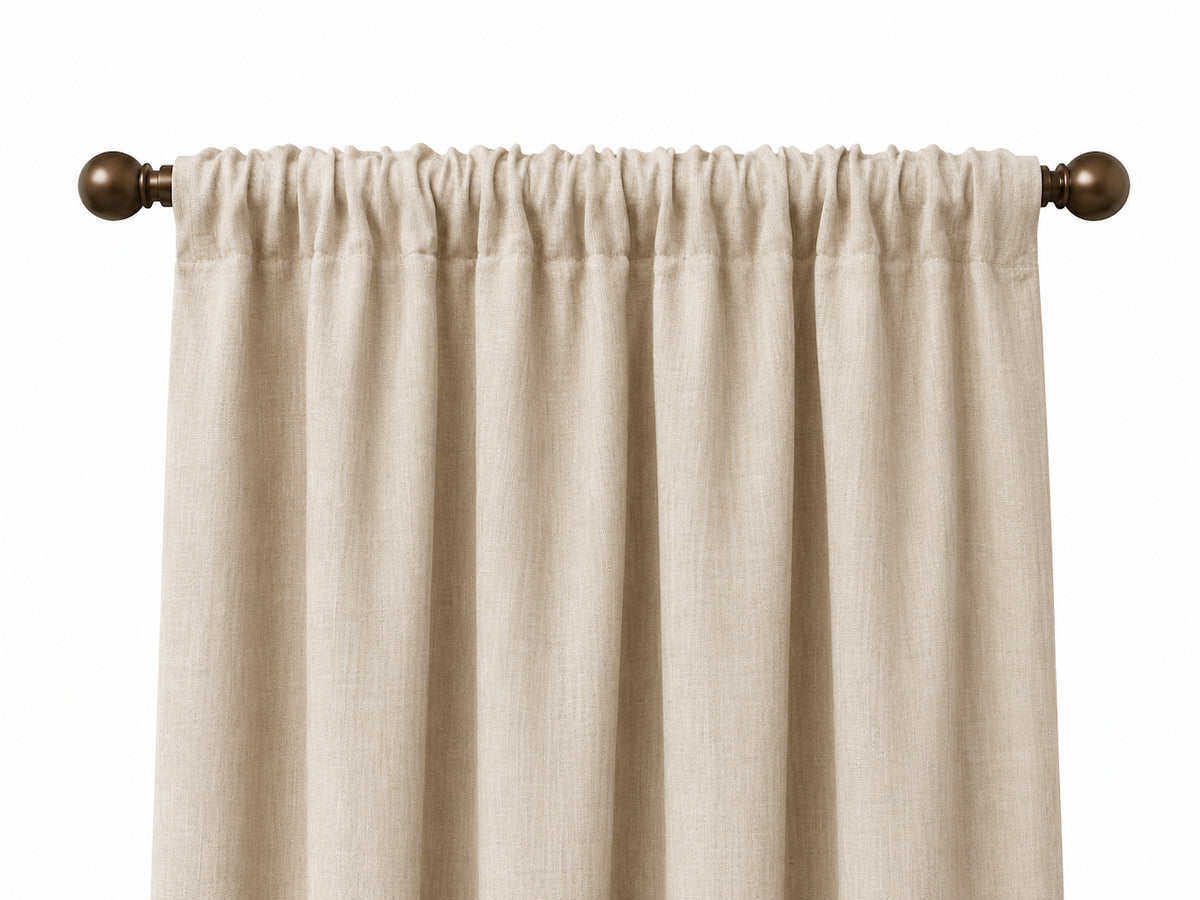

Rod Pocket

Standard Fullness 2×

A soft gathered look with the rod concealed inside the pocket.

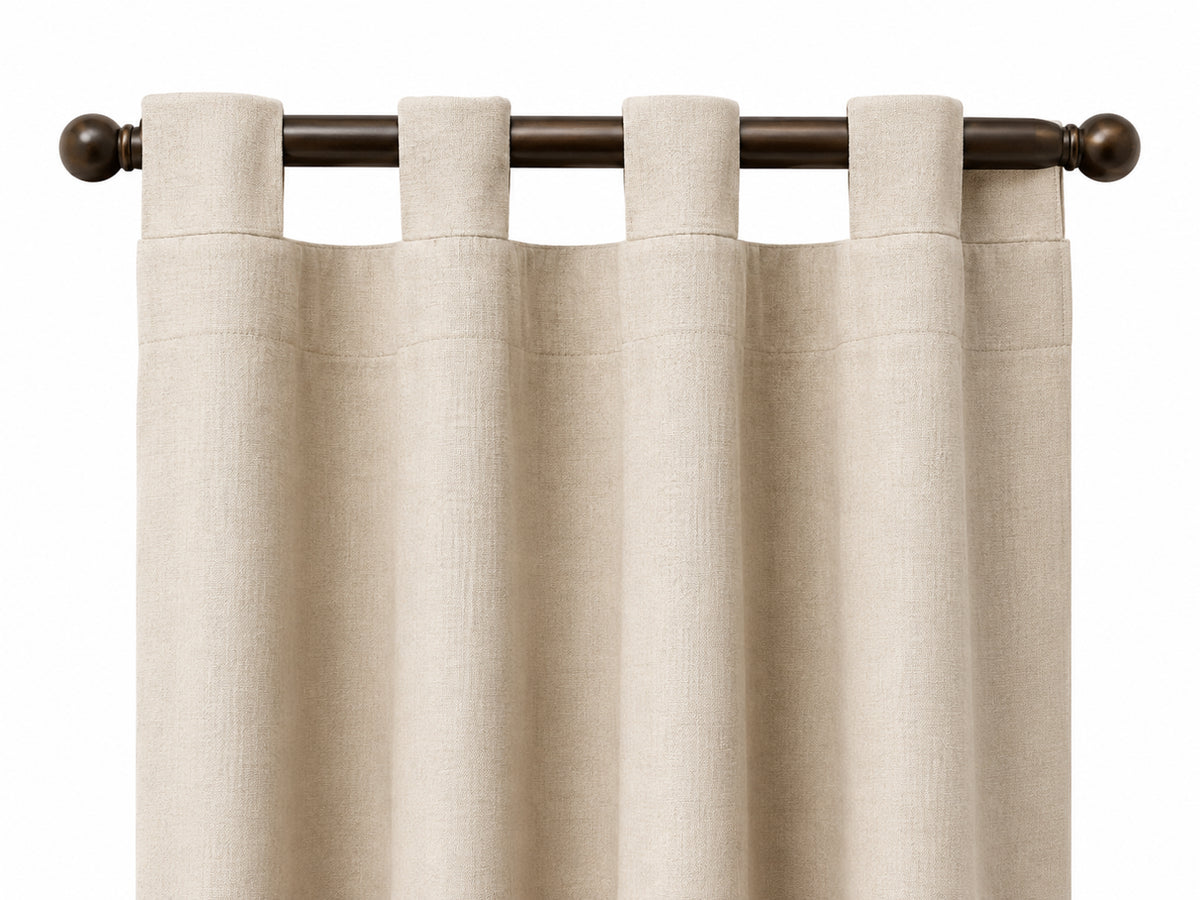

Back Tab

Standard Fullness 2×

Hidden tabs create a clean front with relaxed folds.

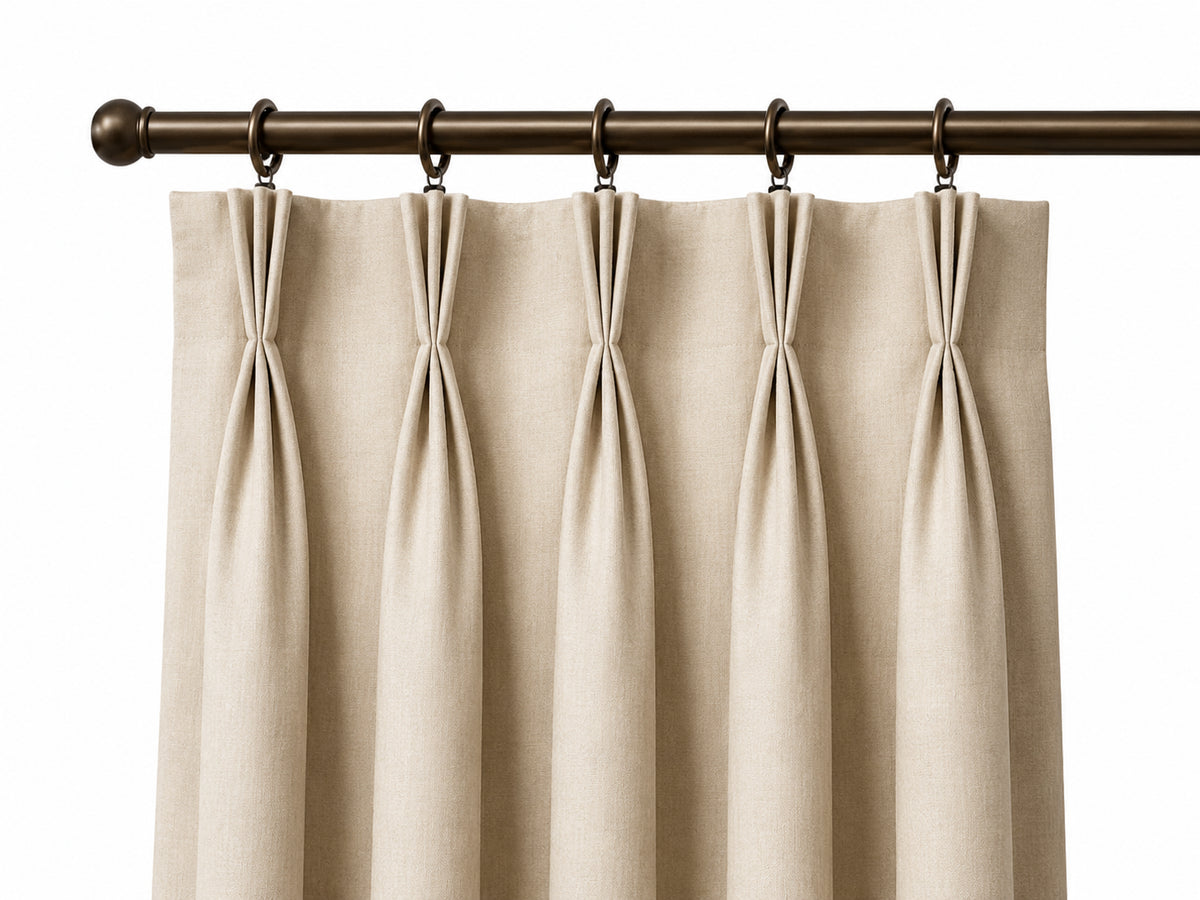

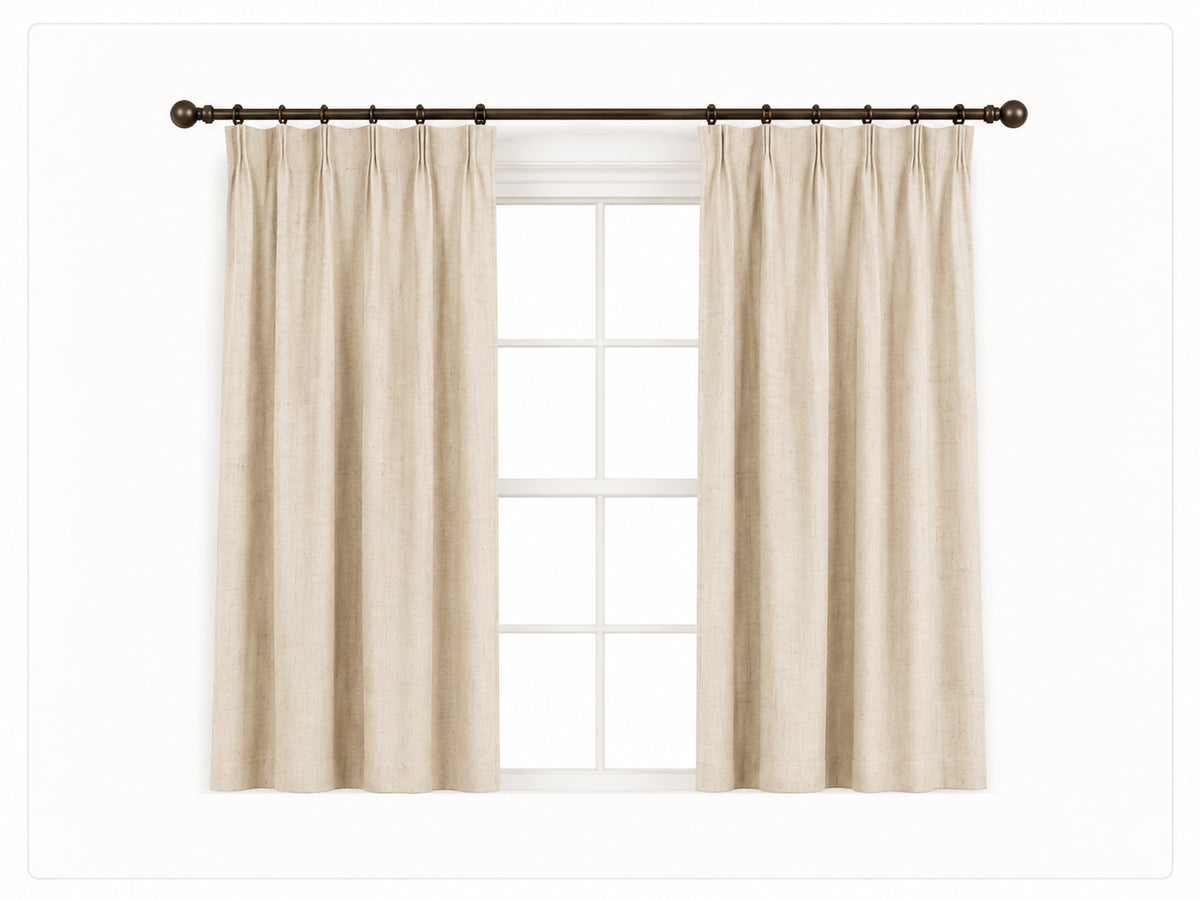

Triple Pinch Pleat

Built-In Fullness 2.5×

Structured pleats create a tailored, formal appearance.

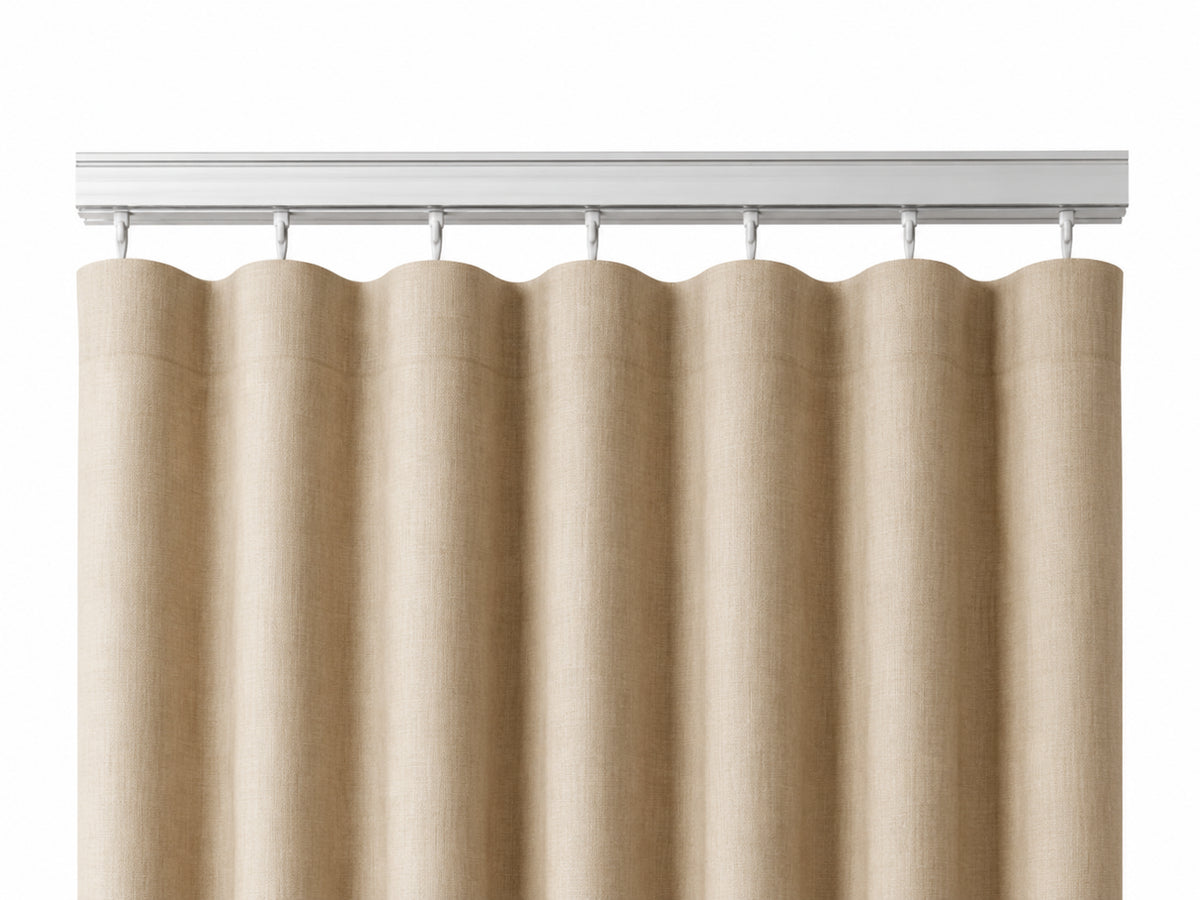

S-Fold / Wave

Built-In Fullness 2.6×

Continuous waves create a smooth, contemporary rhythm.

Curtain length

How to Measure Curtain Length

Your starting point depends on the header style you choose.

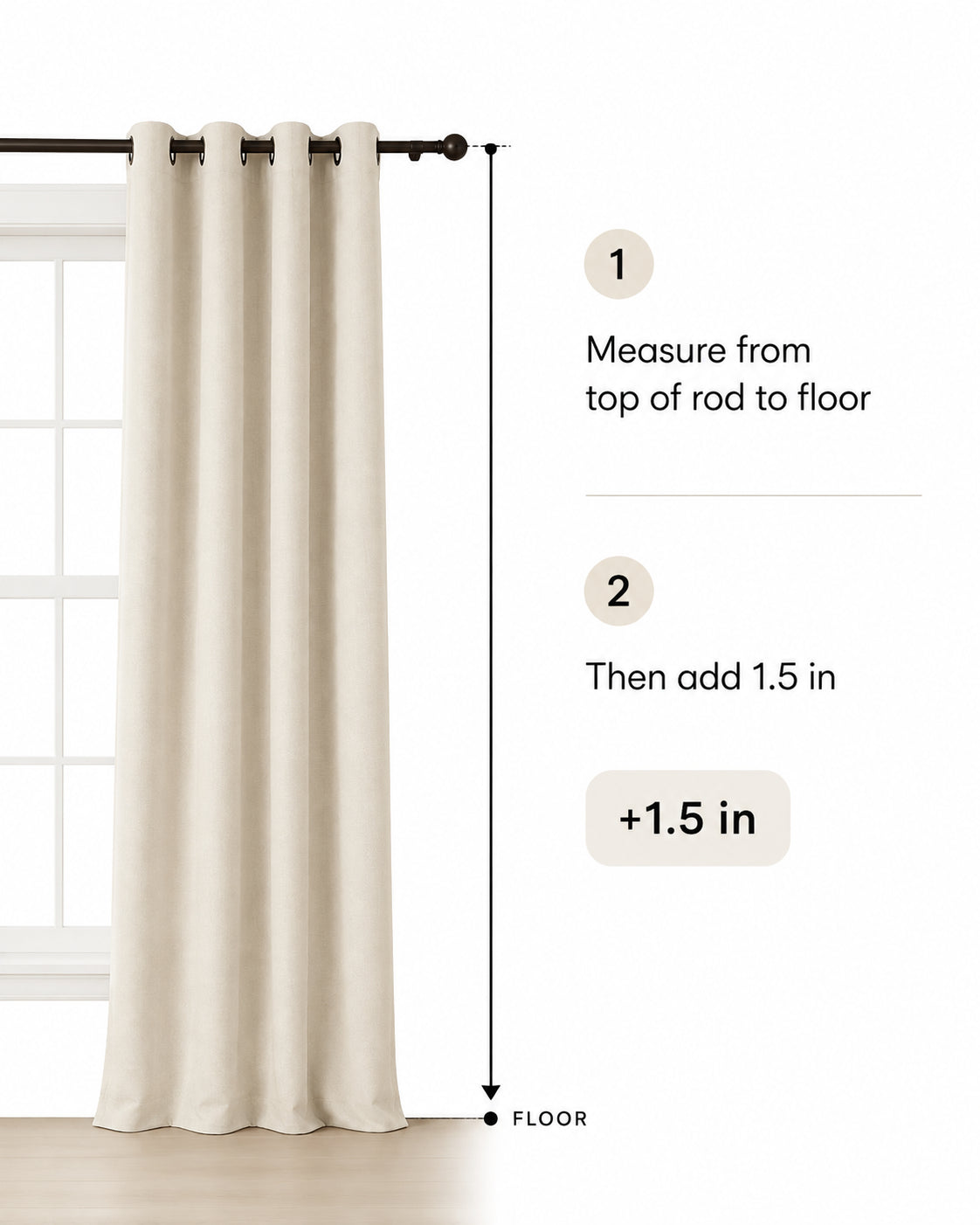

Grommet

+1.5"

Measure from the top of the rod to the floor, then add 1.5 inches.

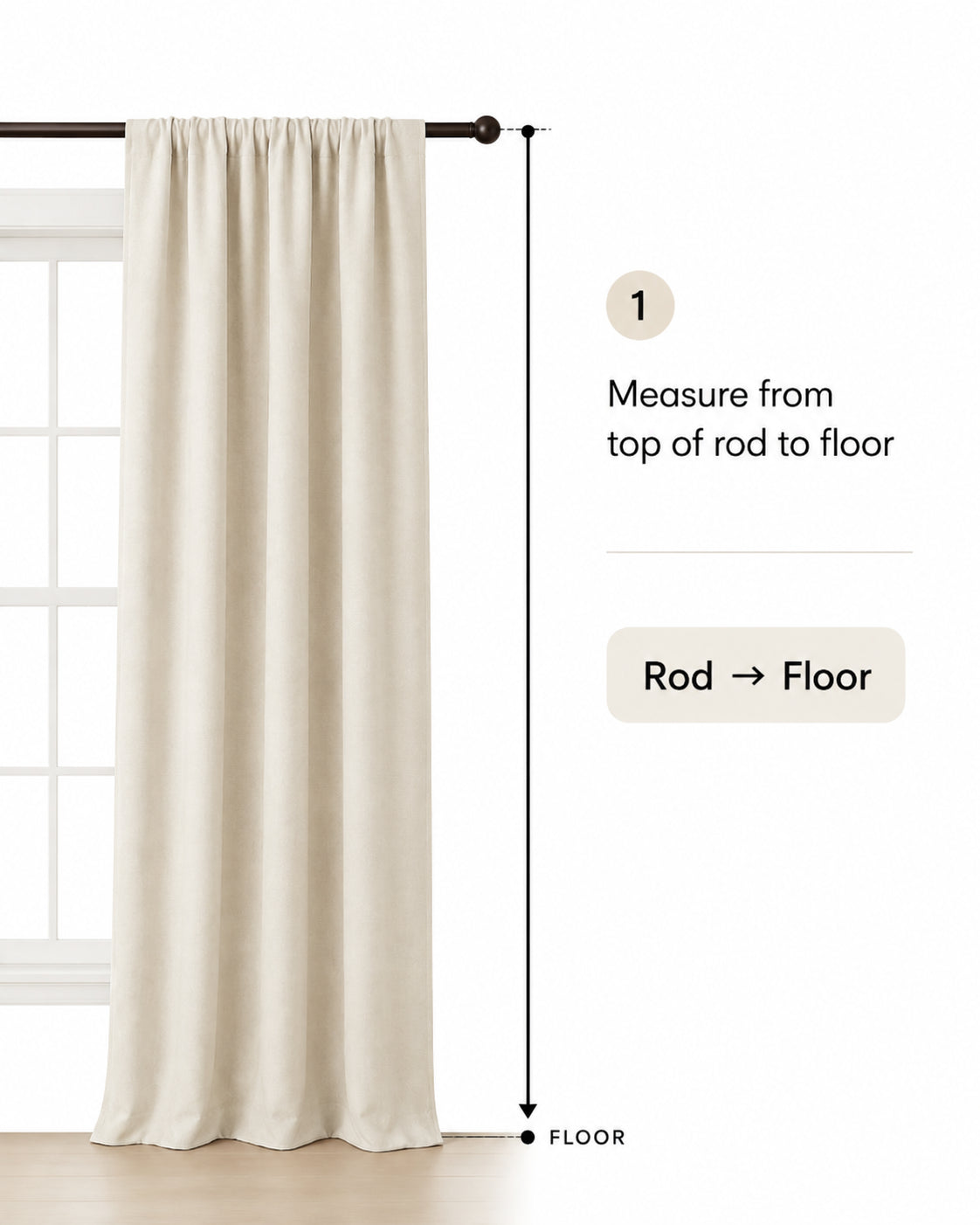

Rod Pocket / Back Tab

Rod → Floor

Measure from the top of the rod to your desired finished length.

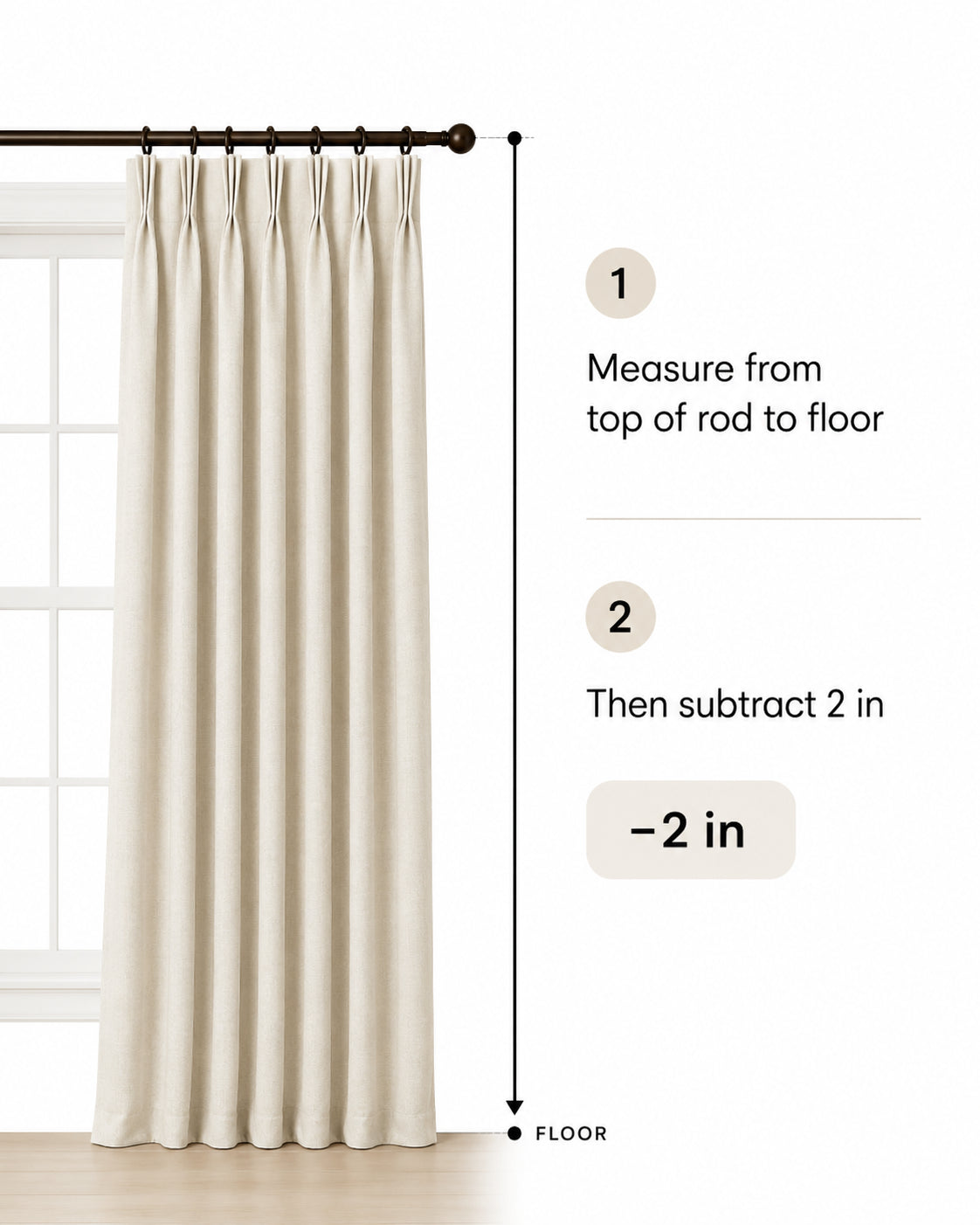

Triple Pinch Pleat

−2"

Measure from the rod to the floor, then subtract 2 inches.

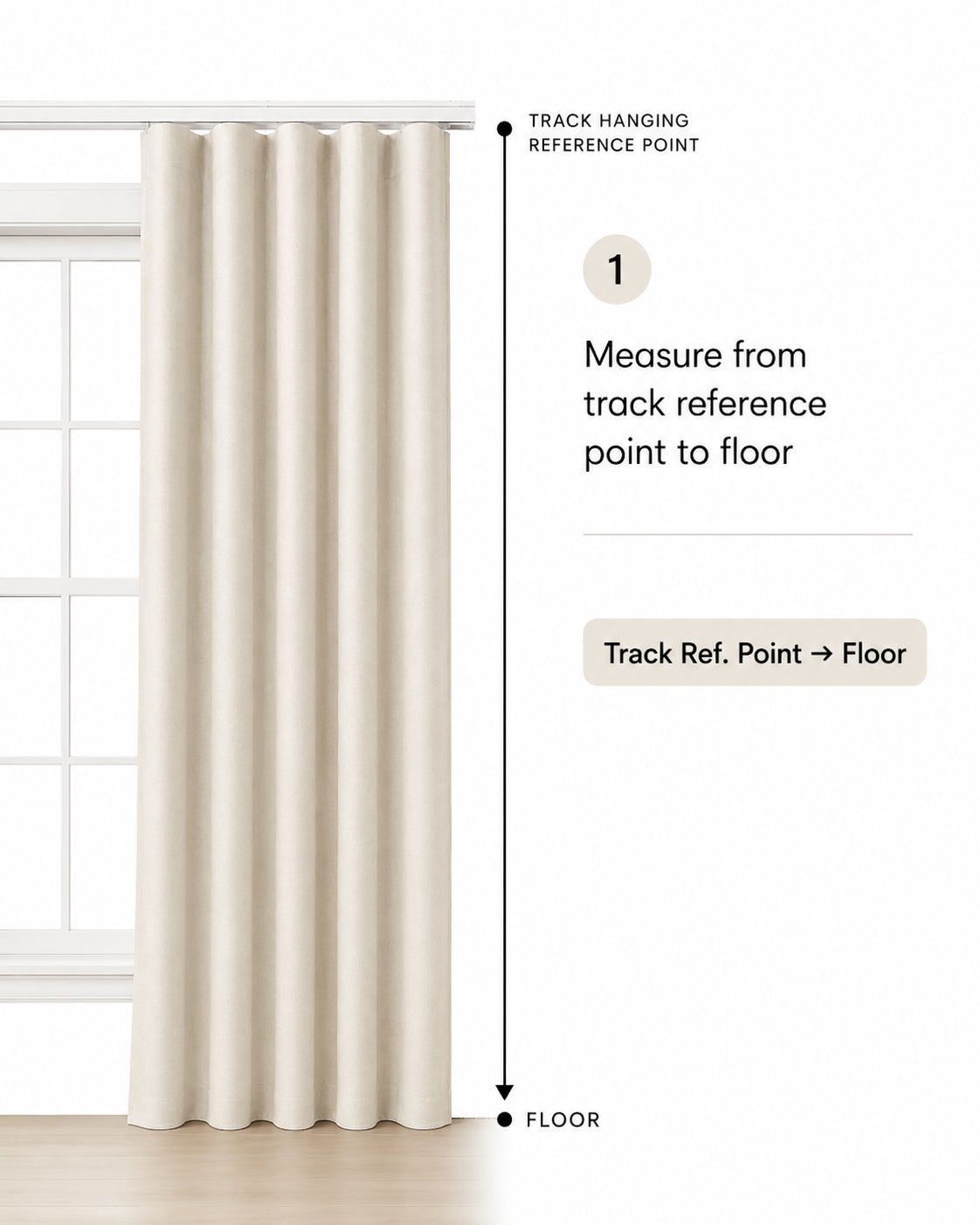

S-Fold / Wave

Track → Floor

Measure from the track hanging reference point to the floor.

Measure vertically to the point where you want the finished curtain to end.
Floor length

Choose How Your Curtains Meet the Floor

Choose the finished look you want before confirming your curtain length.

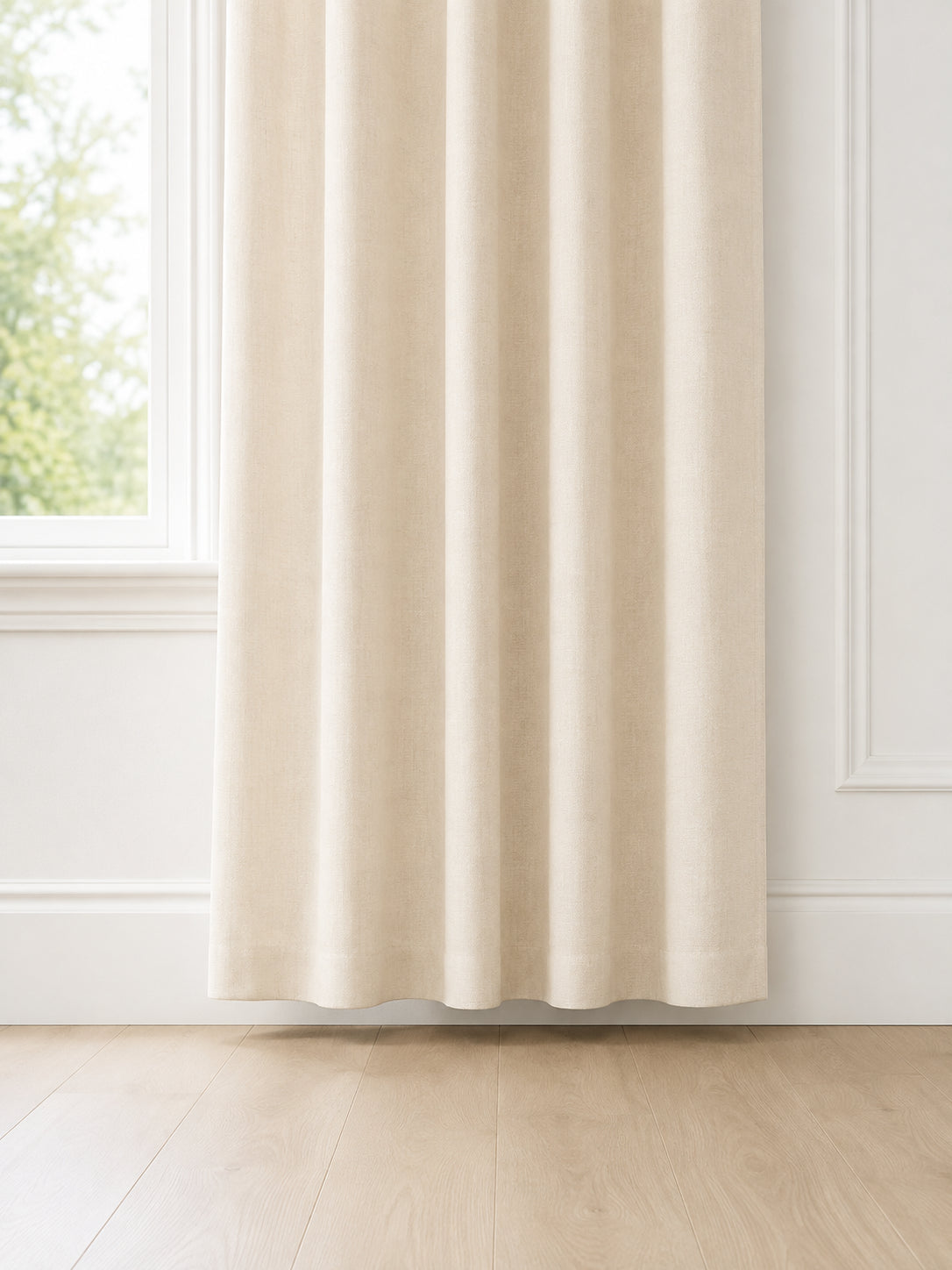

Floating

Above Floor

Finishes slightly above the floor for a clean, practical look.

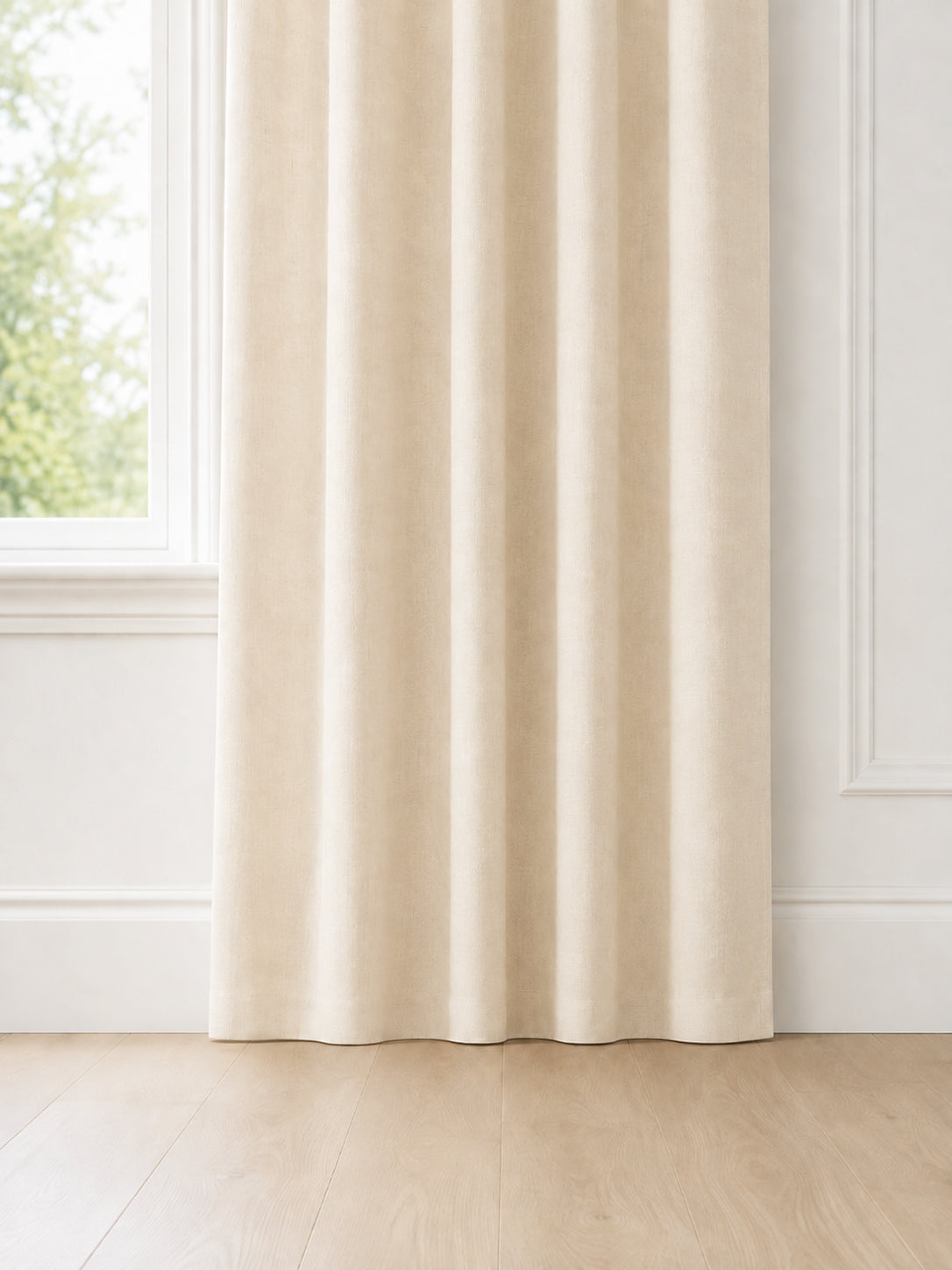

Kissing

Touches Floor

Gently meets the floor for a precise, tailored finish.

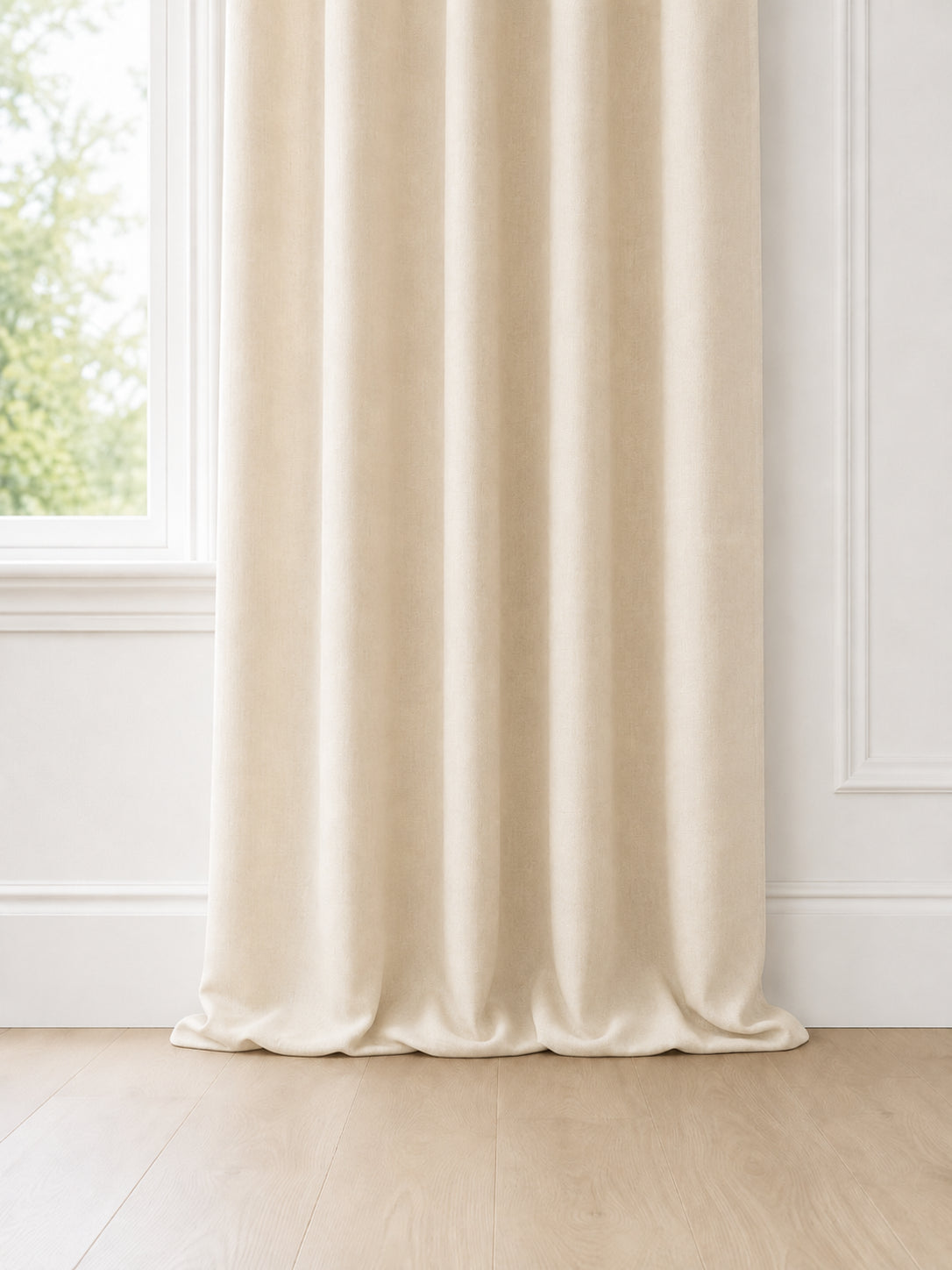

Light Puddle

+2–3"

Adds 2–3 inches for a soft, relaxed pool of fabric.

Measure Twice. Order Once.

Review your width, header style, panel quantity and finished length before placing a custom order.

Rod / Track Width Header Style Panel Quantity Finished Length
